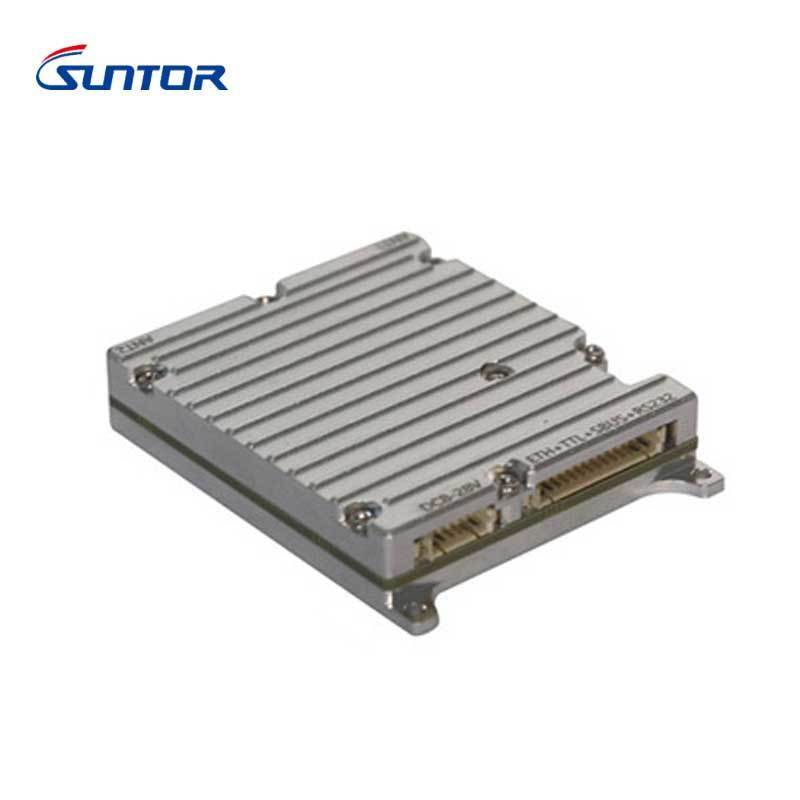

MD30Pro Drone Mesh Radio with AES Encryption & 25Mbps Data Rate

Name: MD30Pro Drone Mesh Radio with AES Encryption & 25Mbps Data Rate
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: MD30Pro
Price: 5,500.00 USD
Availability: InStock

제품 상세정보

원래 장소: 선전

브랜드 이름: Suntor

모델 번호: MD30Pro

지불과 운송 용어

최상의 가격을 얻으세요

지금 연락하세요

사양

설명

사양

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                      MD30Pro drone mesh radio, AES encryption mesh radio, 25Mbps data rate drone radio


주파수 범위:	1300~1500MHz	송신기 전력:	1W (0.5W * 2)
전송 시스템:	COFDM	데이터 속도:	25Mbps@10MHz(피크)
비디오 입력:	ETH(옵션용 HDMI/SDI)	네트워킹 홉:	1 / 2 / 3 / 4 / 10 홉

주파수 범위:	1300~1500MHz
송신기 전력:	1W (0.5W * 2)
전송 시스템:	COFDM
데이터 속도:	25Mbps@10MHz(피크)
비디오 입력:	ETH(옵션용 HDMI/SDI)
네트워킹 홉:	1 / 2 / 3 / 4 / 10 홉

설명

MD30Pro Drone Mesh Radio with AES Encryption & 25Mbps Data Rate

The MD30Pro Drone Mesh Radio is a compact, lightweight, and high-performance IP Mesh networking device designed for UAV communication, tactical operations, emergency response, and long-range wireless data transmission. Built with advanced COFDM modulation, AES128/256 encryption, and frequency hopping technology, the MD30Pro delivers stable broadband connectivity in complex environments.

Supporting up to 25Mbps data rate, 30KM air-to-ground transmission, and multi-node self-healing mesh networking, the MD30Pro provides reliable real-time video, telemetry, and IP data transmission for mission-critical applications.

Key Features

Long Range UAV Mesh Communication - Supports up to 30KM air-to-ground wireless transmission distance for stable communication links
High-Speed Broadband Data Transmission - Peak data rate of 25Mbps supports real-time HD video streaming and IP data communication
Advanced IP Mesh Networking - Ad-hoc mesh networking with over 64 IP Mesh nodes that automatically connect and self-organize
AES128/256 Encryption Protection - Secure wireless communication for sensitive video and data transmission
FHSS Frequency Hopping Technology - IFS/FHSS frequency hopping improves anti-interference capability and reliability
Compact and Lightweight Design - Weighing less than 50g, optimized for UAV payload integration

Technical Specifications

Specification	Details
Product Model	MD30Pro
Transmission Technology	COFDM
Networking Type	IP Mesh / Ad-Hoc Network
Frequency Range	1350~1450MHz (Customizable)
Data Rate	Up to 25Mbps
RF Power	0.5W × 2
Transmission Distance	Up to 30KM Air-to-Ground
Encryption	AES128 / AES256
Modulation	BPSK/QPSK/16QAM/64QAM
Network Nodes	More Than 64 Nodes
Networking Hops	Up to 10 Hops
Startup Time	5 Seconds
Power Consumption	≤10W Peak
Voltage Input	DC 8~28V
Dimensions	≤66 × 48 × 11.5mm
Weight	≤50g
Operating Temperature	-40°C ~ +55°C

Applications

UAV Video Transmission
Emergency Rescue Communication
Tactical Surveillance Systems
Public Safety Operations
Border Security
Firefighting Communication
Industrial Inspection Drones
Smart City Wireless Networking
Tactical and Defense Communication
Unmanned Ground Vehicle (UGV) Communication

Why Choose MD30Pro UAV Mesh Radio?

The MD30Pro combines long-range transmission, secure mesh networking, and high-speed broadband communication in an ultra-compact form factor. Its advanced self-healing IP Mesh architecture ensures stable communication even in dynamic and infrastructure-less environments.

Whether deployed for emergency response, drone video transmission, or tactical communication, the MD30Pro provides reliable and secure wireless connectivity for professional mission-critical applications.
