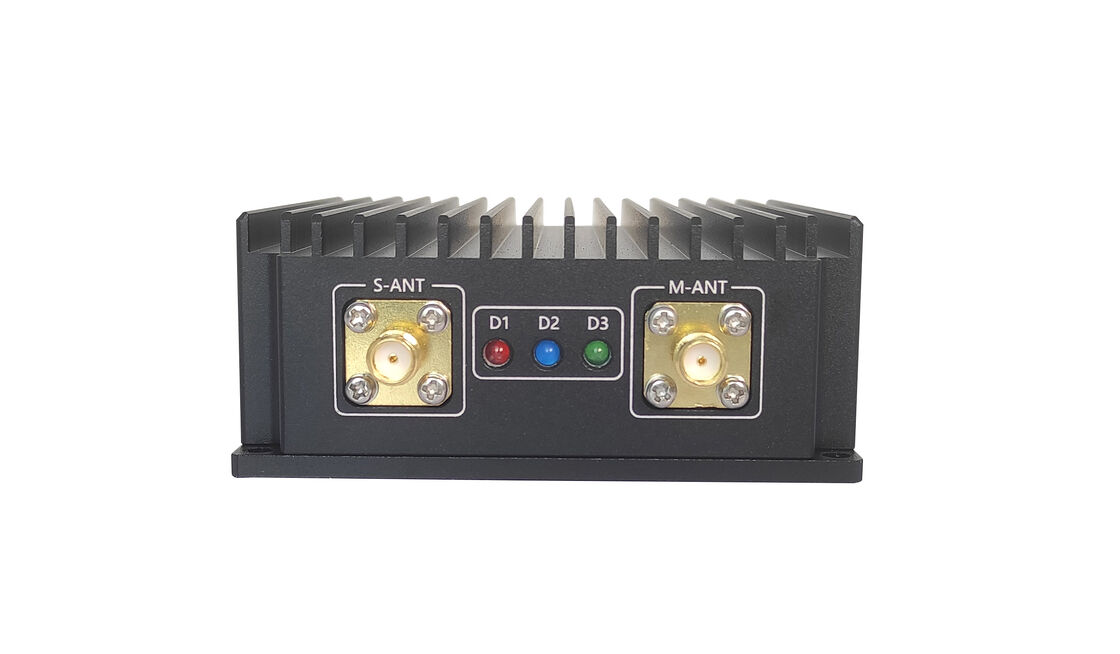

Lightweight UAV Video Link With 24Mbps, Dual Antenna & AES128 Encryption

Name: Lightweight UAV Video Link With 24Mbps, Dual Antenna & AES128 Encryption
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: CD20Pro
Price: 5,500.00 USD
Availability: InStock

제품 상세정보

원래 장소: 중국

브랜드 이름: Suntor

인증: CE

모델 번호: CD20Pro

지불과 운송 용어

최소 주문 수량: 1세트

포장 세부 사항: 플라스틱 상자

배달 시간: 7-15일

지불 조건: T/T, 서부 동맹

공급 능력: 5000/월

최상의 가격을 얻으세요

지금 연락하세요

사양

설명

사양

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Lightweight UAV video link, Dual antenna COFDM transmitter, AES128 encrypted video transmitter


주파수 범위:	1428~1448MHz(표준)	기술:	TDD-OFDM/MIMO/1T2R
조정:	QPSK/16QAM/64QAM	대역폭:	5MHz / 10MHz / 20MHz
데이터 속도:	24Mbps @ 10MHz(피크)	RX 민감도:	-99dBm @ 5MHz
보안:	AES128 암호화	힘:	DC12V~27V 전원 공급 장치 ≤ 6W @ DC12V 전력 소비(공기)
무게:	≤ 230g(공기)

주파수 범위:	1428~1448MHz(표준)
기술:	TDD-OFDM/MIMO/1T2R
조정:	QPSK/16QAM/64QAM
대역폭:	5MHz / 10MHz / 20MHz
데이터 속도:	24Mbps @ 10MHz(피크)
RX 민감도:	-99dBm @ 5MHz
보안:	AES128 암호화
힘:	DC12V~27V 전원 공급 장치 ≤ 6W @ DC12V 전력 소비(공기)
무게:	≤ 230g(공기)

설명

Lightweight UAV Video Link With 24Mbps, Dual Antenna & AES128 Encryption

Product Overview

The UAV video transmission device is specifically designed for unmanned intelligent platforms including UAVs, USVs, UGVs, and robot swarm communication networking. This advanced system integrates ultra-long-range wireless communication with multi-protocol interface adaptation, overcoming traditional transmission limitations. It enables 20km+ air-to-ground full-duplex real-time video, audio, telemetry, and remote control data interaction while supporting precise point-to-point control and distributed star-network communication in complex operational environments.

With its compact size, lightweight construction, quick installation, and simple operation, this solution is ideal for UAVs, USVs, UGVs, robots, and other applications requiring integrated image and data wireless transmission. Interface configurations can be customized to meet specific operational requirements.

Technical Specifications

Frequency Range	1428～1448MHz (Standard)
Bandwidth	5MHz / 10MHz / 20MHz
Modulation	QPSK / 16QAM / 64QAM
Transmission Distance	Up to 20km Air-to-Ground
Technology	TDD-OFDM, MIMO, 1T2R
Data Rate	24Mbps @ 10MHz (Peak)
Frequency Options	1.4GHz / 2.4GHz / 800MHz
Rx Sensitivity	-99dBm @ 5MHz
Security	AES128 Encryption
Antenna	Dual SMA Antennas
Weight	230g (Air Unit)
Power Supply	DC12V～27V Power Supply ≤ 6W @ DC12V Power Consumption (Air)

Professional Applications

The CD20Pro Drone Video Transmission Radio is engineered for diverse professional UAV applications across multiple industries:

Aerial Filming & Photography - Provides smooth HD video feed for professional cinematography and live streaming applications
Public Safety & Search-and-Rescue - Delivers reliable long-range communication capabilities for critical missions and emergency response
Industrial Inspection - Enables real-time HD video transmission for infrastructure, utility, and pipeline monitoring operations
Military & Tactical Operations - Offers encrypted, interference-resistant transmission for secure environments and defense applications

Package Contents

The CD15 package includes all essential components for immediate deployment:

Omni Antennas for Air Unit × 2
Omni Antennas for Ground Unit × 2
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)
Serial Cable × 2
S.BUS Cable × 1
XT30 Power Cable × 1
